Hochiki

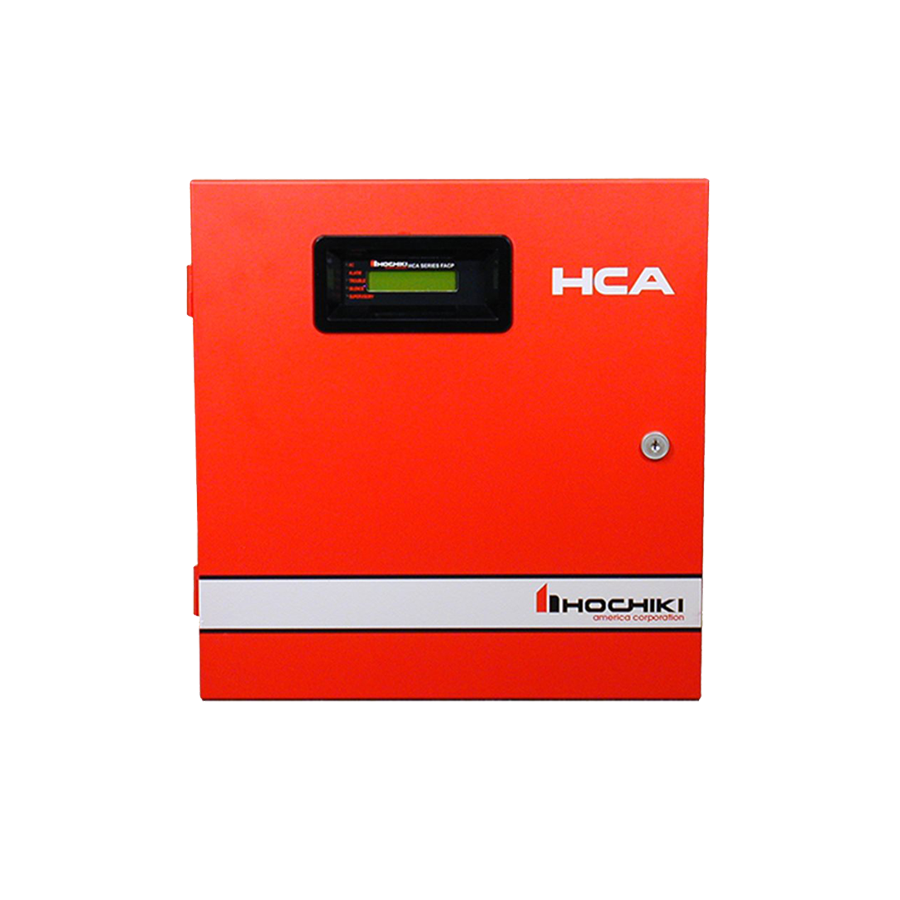

Hochiki Conventional Fire Alarm

HCA SERIES

Data Sheets & Product Info Library - Click Here

Conventional Control Panel

The HCA series is available in a 2, 4, or 8 zone conventional panel design which is in accordance with UL 864 9th Edition Listing Detection and Fire Alarm Systems – Control and Indicating Equipment. The HCA series are fully programmable using simple front panel menu options. HCA supports releasing of agent (FM-200, 3M Novec, etc) and water (Pre-action, Deludge, etc.) on the HCA-4 and HCA-8 models only. Also, Built-in Dialer on HCA-2D, HCA-4D and HCA-8D models only. This conventional control panel offers programing features to the user. The panel is a single board construction, which is installer friendly. The panel is compatible with a wide range of Hochiki America's detection devices

HCP-1008E (8-Zone Expandable)
Conventional Control Panel

Hochiki’s HCP-1008E Fire Alarm Control Panel is a microprocessor based unit designed for maximum flexibility and easy installation. Fully configurable from the front panel using the push buttons and DIP switches, it enables the user to configure the system to meet their specific requirements.

The HCP-1008E consists of one HMCC-1024-6 main Chassis in an HBB-1024 Enclosure. The HMCC1024-6 main Chassis comes complete with 8 Class B (Style B) initiating circuits which may be configured as 4 Class A (Style D) circuits. It can be expanded up to 24 Class B or 12 Class A circuits with the addition of two HDM-1008 Initiating Circuit Modules. In addition it comes equipped with 4 Class A/B (Style Z/Y) indicating circuits which are each rated at 1.7 Amps. The main Chassis also includes a 6 amp power supply which powers the system and supplies two 4-wire resettable regulated smoke power supply of 24 VDC 200mA maximum each. The HMCC-1024-6 also allows for the addition of two HSGM-1004 Signal Modules or two HRM-1008 Relay Modules in place of the HDM-1008 Initiating Circuit Adder Modules. (Maximum of 2 adder modules and 1 communication module).

The cabinet is available in a beige color for the Canadian market and a red exterior for the U.S. and international markets. A Fire Retardant Lexan Window in the hinged door allows for viewing of the status LEDs. It comes with a durable CAT-30 lock and key. Space is provided for up to 17 AH Gel Cell batteries.

Hochiki's HCP-1008E is designed as an economical Microprocessor Based Fire Alarm Control Panel which is expandable up to 24 display points. Its modular design suits various applications. Ideal for applications such as small institutional and commercial buildings, shopping malls, offices and public establishments, the HCP-1008E is configurable to meet virtually all requirements. The panel is designed to be easy in its installation, operation and maintenance. This makes the system cost effective and very reliable for its intended applications.
