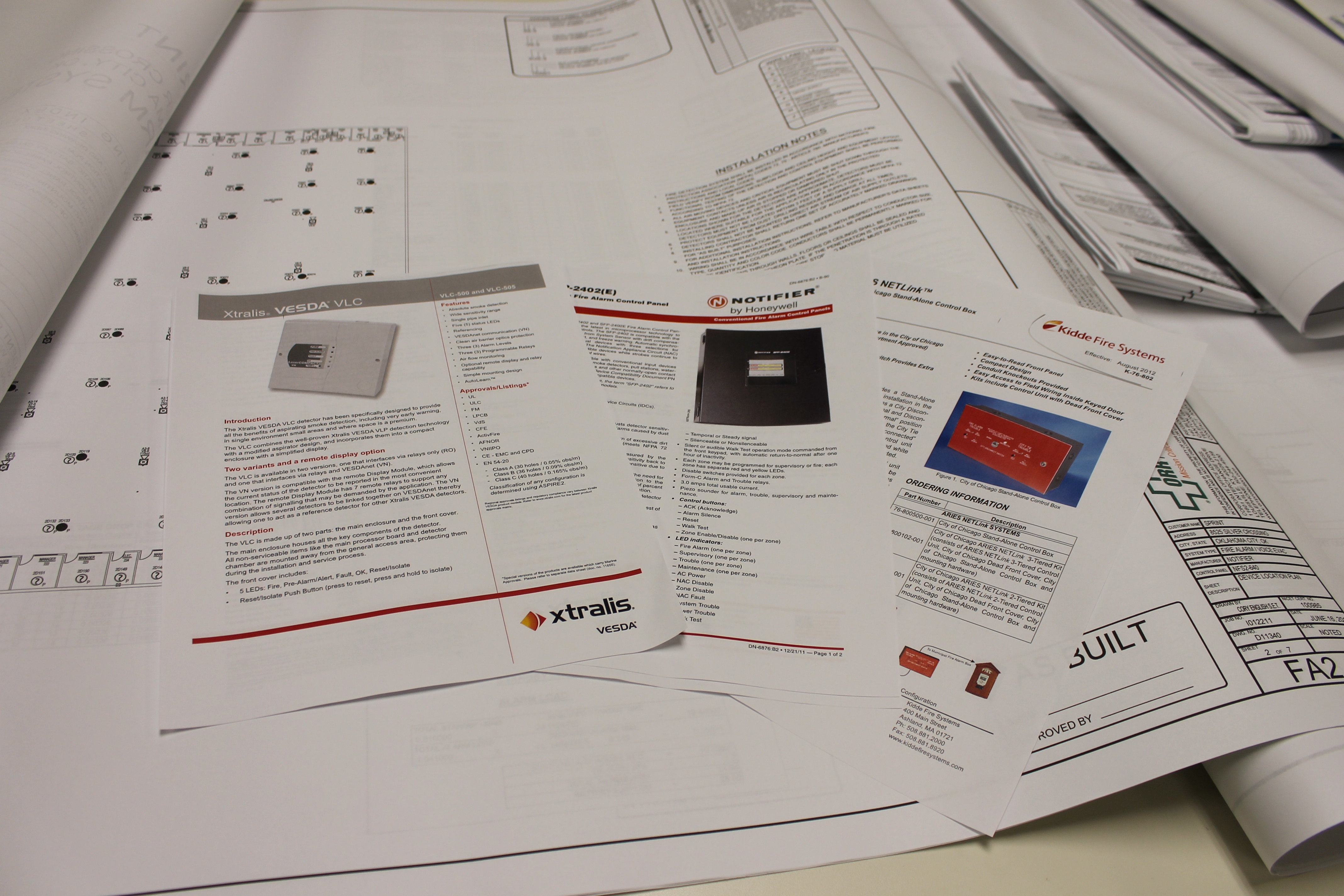

Manufacturer Data Sheets

Ansul Logo Chemetron Logo Chemguard Logo Dettronics Logo Fenwal Logo
Fike Logo Firetrace Logo Gamewell Logo Kidde Logo Marioff Hi Fog Logo
Notifier Logo Protectowire Logo RKI Logo Xtralis Logo




ArrowTypical Floor Space for Clean Agent Containers

ArrowWall Strength To Support Clean Agent Sphere

Specifications & Data SheetsDesign Guidelines To Support Spot Smoke Detectors

ArrowDesign Guidelines For Air Sampling Smoke Detection

ArrowRoom Integrity

ArrowRoom Venting


Typical Floor Space Required For Clean Agent Containers:

The average Fenwal cylinders requires - 24” x 30” per cylinder

Fenwal FM-200 Cylinder Data Sheet

Fenwal Novec 1230 Cylinder Data Sheet


The average Fike cylinders requires - 24” x 24” per cylinder

Fike FM-200_HFC-227 Cylinder Data Sheet

Fike ECARO-25 Cylinder Data Sheet




How Strong  Do I Need to Build My Wall To Support  A Clean Agent Sphere

When mounting cylinders to concrete masonry, brick walls, columns or poured concrete  walls always:

  • Use hot dipped galvanized P1000 Unistrut channel.
  • Use the mounting bracket  as a template, drill two holes through each P1000 Unistrut channel to match the top and bottom holes on the bracket back at a distance of 11 – 1/8”.
  • To prevent spalling, do not use a rotary hammer drill for masonry drilling.

Arrow



Design Guidelines Spot Smoke Detectors:

For smooth ceiling applications, the distance between detectors shall not exceed their listed  spacing. Detectors  should be placed with one half the listed spacing from all walls or partitions. These rules of thumb are adjusted for other ceiling types and construction. Refer to NFPA 72 for specific instructions.


Arrow NFPA Guidelines



Design Guidelines For Air Sampling Smoke Detection:

Air sampling smoke detection pipe layout should follow manufacturer recommendations, which  generally includes balanced pipe lengths, elbows and fittings. Sample ports should be spaced according to spot type detection guidelines.


Arrow Have a specific question? Ask the EXPERT



Room Integrity

Spaces dedicated for mission critical operation that require specialized fire protection systems must be sealed well enough  to maintain design concentration for 10 minutes. This means all penetrations into the space must be sealed, doors must be fitted with sweeps and  seals. Ceiling tiles must be installed and clipped in place within 8’ of all discharge nozzles.


Arrow Preparing an Area for Room Integrity Fan Testing



Room Venting

Rooms protected by specialized fire protection systems may require additional venting  to relieve  pressures  experienced during discharge. While this is always a consideration with  inerting  agents, it sometimes applies to chemical agents as well. To determine venting requirements, calculation tables are required.  Fill out Ask the Expert page and request assistance with venting calculations.


Arrow Ask the Expert for Assistance with Venting Calculations
